Configuring the ports of the virtual machine

In technological solutions such as the one you are implementing, it is necessary to access the configuration of the software elements to guarantee that their operation will comply with the required performance. To program and configure these programs it will be necessary to enable the communication ports in the virtual machine.

Because InfluxDB is a database that we are not going to access from the outside, but other applications will access it when they perform data read or write operations, you will only have to enable the Node-RED and Grafana ports. By default, Node-RED occupies port 1880 and Grafana 3000.

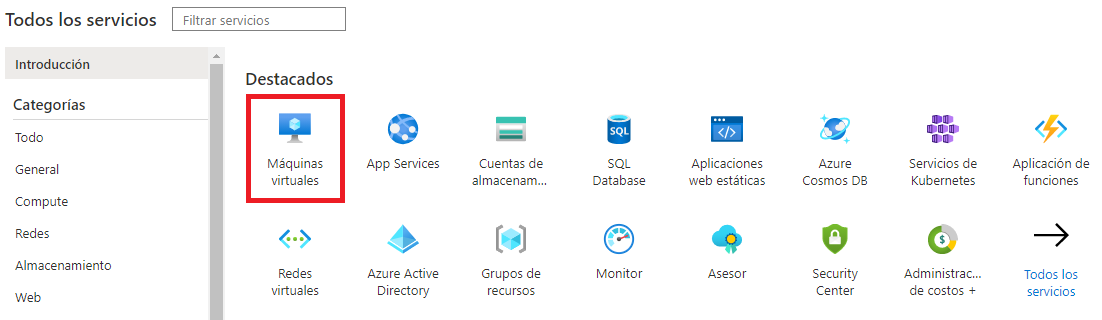

In Azure, you will need to access your virtual machine. You can do it through the “Virtual machines” icon, highlighted in the following screenshot.

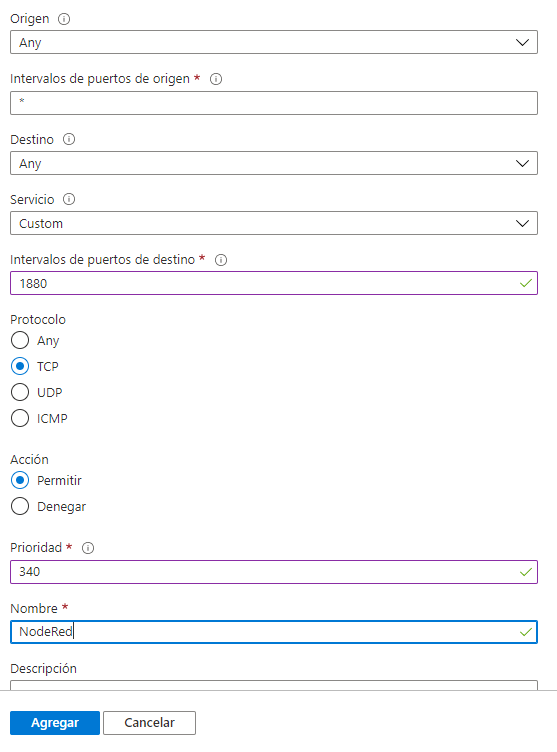

You will access the list of virtual machines created, and clicking on yours will open the general information of the virtual machine. Now, in the "Networks" section of the configuration menu, a list will be displayed. You will need to define new input port rules, one rule for each port, in order to access and configure each software. As an example, below, you can see what data to fill in to configure the port corresponding to Node-RED.

NOTE: When you click “Add” it may take a few seconds for the new rule to be reflected in the list of port of entry rules.

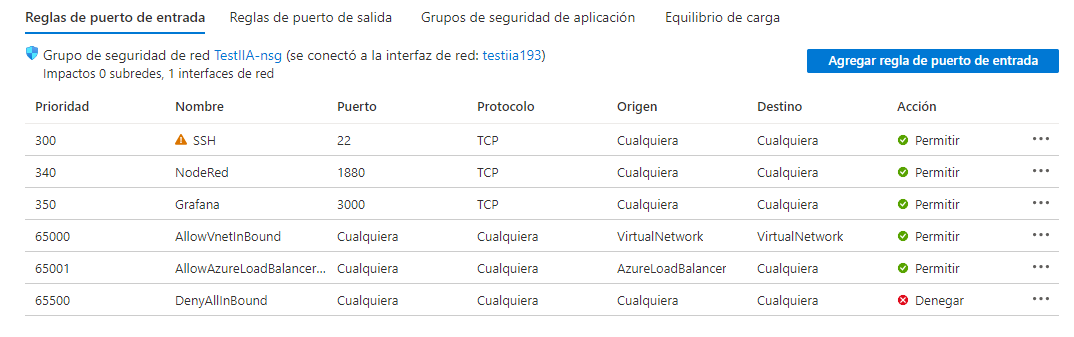

Once you have both rules defined, you should see a list of input port rules like the one in the screenshot below:

Although it is not necessary to do so, you can also generate a rule with the InfluxDB port, which is 8086. In this way, you will be able to communicate from the browser with the database that you will create in InfluxDB of the virtual machine.

The following HTTP address example makes a GET request to the “endpoint” query, with the “q” and “pretty” parameters. According to the InfluxDB API, the “q” parameter must contain the command that we want to execute, in this case “SHOW DATABASES”, and the “pretty” parameter contains a boolean to indicate that the response is with easy-to-view line breaks.

This is the request:

http://”IPpublicaDeVuestraVM”:8086/query?q=show databases&pretty=true

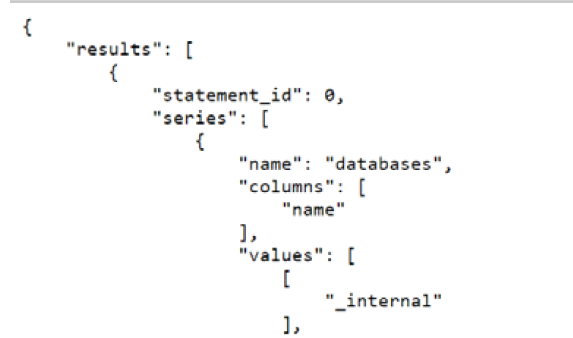

And this is a response message similar to the one you will receive:

To access Node-RED or Grafana you will use the port of each one, the one you have configured in the input port rules of your virtual machine.

To access NodeRed through the browser you must use:

http://”IPpublicaDeVuestraVM”:1880

And to access Grafana you must use:

http://”IPpublicaDeVuestraVM”:3000

Now we recommend that, through your browser, you access the Node-RED installation created in a specific container for this software and verify that the following packages have been installed correctly:

  • Modbus.
  • InfluxDB
  • Dashboard.

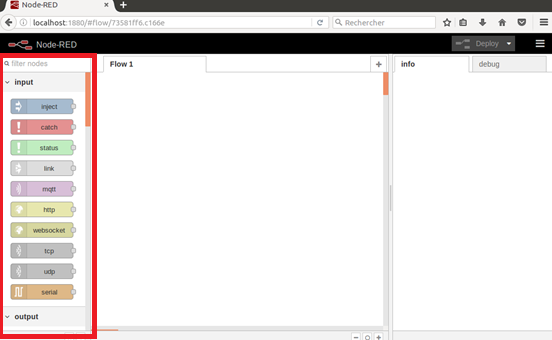

You can do it by consulting the list of available blocks in the vertical bar to the left of your screen, highlighted in the following screenshot.

If you type the names of the packages in the node browser, at the top of the nodes palette, you can verify that you have available the blocks of the Modbus package (in red), the blocks of the Influxdb package (in brown) and the blocks of the dashboard package (in blue).
