Installing containerized software

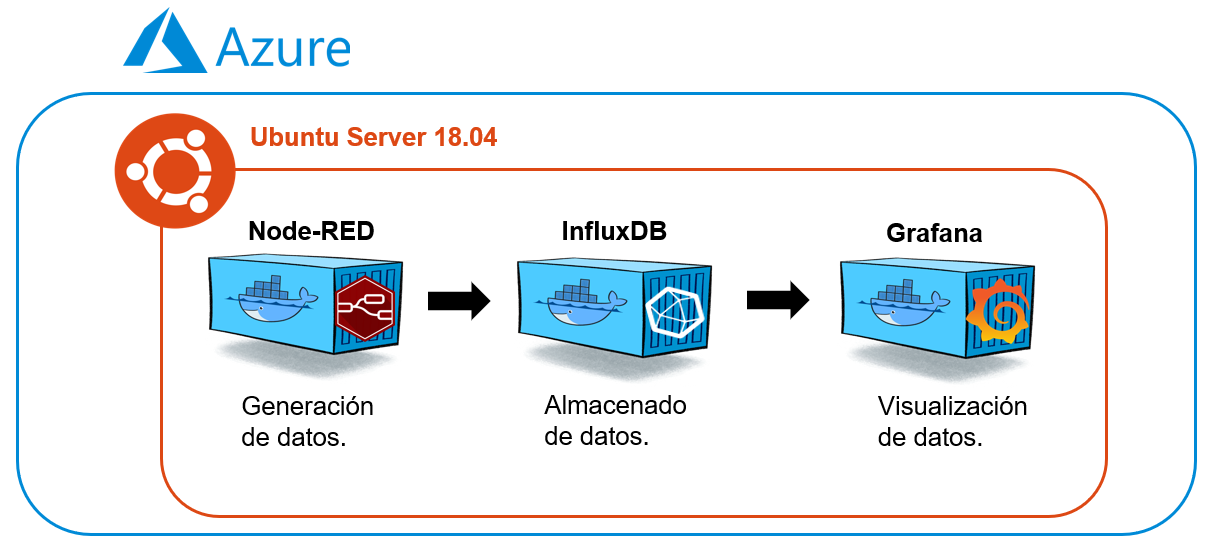

The resources that you will run in the virtual machine are:

  • Node-RED, a communications manager with the plant and other applications in the cloud, which also allows programs to be executed (in the first part of the project, to check its operation, NodeRed will contain a generator of sinusoidal signals at a certain frequency and amplitude that will emulate the captured signal).
  • Grafana, a low-complexity graphical interface that allows you to present data on a web in the form of graphs, maps, etc. It is easily configurable to work with InfluxDB.
  • InfluxDB, a database server in which we will store data.

In the technological solution that you are going to implement, you will install each software in an isolated container, as you can see in the following screenshot:

Docker

To create the containers mentioned above we will use Docker technology. A Docker container is a format that packages all of an application's code and dependencies in a standard format that enables it to run quickly and reliably in computing environments. It is a lightweight, stand-alone executable that integrates everything needed to run an application, including libraries, system tools, code, and runtime. Docker is also a software platform that enables developers to quickly build, test, and deploy containerized applications. We will define some docker terms: - Docker Registry, place to store and download images. Registry is a scalable, stateless server application that stores and distributes Docker images. Docker Hub is a Docker Registry hosted and managed by Docker. It has over 100,000 container images from software vendors, open source projects, and the community. It also contains software and applications from official repositories. Below is the link to search for Docker images: https://hub.docker.com/search?q=

  • Containers,Unlike a virtual machine that provides hardware virtualization, a container provides lightweight virtualization at the operating system level by abstracting "user space." Containers share the core of the host system with other containers. A container, running on the host operating system, is a standard software unit that packages code and all of its dependencies so that applications can run quickly and reliably from one environment to another. Containers are not persistent and are activated from images.

  • Images from Docker, cA choice of software to run as a container that includes a set of instructions for creating a container that can run on the Docker platform. Images are not modifiable, so to make changes to an image you must create a new one.

With that said we can conclude that a Docker image contains everything you need to run your software and a Docker container is a running instance of a Docker image.

Using Docker has two big advantages that change the way we build, ship, and run software:

  • Improves the process to get applications reliably from development to production.
  • Provides a standard image format for moving from on-premises to the cloud.

Docker instalation

With these basic concepts and once connected to your virtual machine via SSH, you must execute the commands presented in this section to download and install Docker. The commands found below are the same as those provided in the official Docker documentation, which you can find at the following link:

https://docs.docker.com/engine/install/ubuntu/

NOTE: if you have an AMR processor, consult the official documentation, https://docs.docker.com/engine/install/ubuntu/, since the last command will be different in your case).

sudo apt-get udpate

sudo apt-get install \

  apt-transport-https \

  ca-certificates \

  curl \

  gnupg \

  lsb-release

sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

echo \

  "deb [arch=amd64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu \

  (lsb\_release -cs) stable" | sudo tee
  /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt-get update

sudo apt-get install docker-ce docker-ce-cli containerd.io

You can verify that Docker has been installed correctly by running the following command, to download and run an image in a container, printing an informative message on the screen while doing so.

sudo docker run hello-world

El resultado es el siguiente:


Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
d1725b59e92d: Pull complete
Digest: sha256:0add3ace90ecb4adbf7777e9aacf18357296e799f81cabc9fde470971e499788
Status: Downloaded newer image for hello-world:latest

Hello from Docker!
This message shows that your installation appears to be working correctly.

In line 1 we are running the Docker client, and we are indicating that we want to run a container from the hello-world image in the public Docker registry.

If this is the first time we have executed that image, line 2 will appear, indicating that the image cannot be found and it will proceed to search for it, by default, in the public registry. If we have an Internet connection, the image will be downloaded (line 6) and a container will automatically be created.

Whether the image has been downloaded or was already downloaded, the container will run, getting the welcome text seen in the box above.

Useful commands

  • sudo docker pull (image name), to download images from the official repository.
  • sudo docker run (image name), to download images and create and initialize the containers.
  • sudo docker exec, to execute a command inside a container that is already running.
  • sudo docker images, to see the list of images that we are using.
  • sudo docker rmi (image name), to remove images.
  • sudo docker ps, to see the list of system containers.
  • sudo docker container start (container name or id) or sudo docker start (container name or id), to start a stopped container.
  • sudo docker container stop (container name or id) or sudo docker stop (container name or id), to stop a started container.
  • sudo docker container rm (container name or id) or *sudo docker rmi (container name or id), to remove containers.
  • sudo docker logs (container name or id), to see the outputs of that container. Very useful for detecting errors.
  • sudo docker volume create (volume name), to create a database.
  • sudo docker volume ls, to see all volumes created.
  • sudo docker volume inspect (volume name), to view the metadata of a volume.
  • sudo docker volume rm (volume name), to remove volumes.
  • sudo docker --restart always, so that the containers are always restarted in case they are closed.

Download images with diferents versions

As we have seen before, we can download an image with the docker run (image name) command and the latest version will be downloaded by default. If we want to download the version of a specific image (for example due to the use of different operating systems, architectures...) we must specify its tag as follows: docker run (image name:tag). Some examples:

docker run hello-world:latest
docker run hello-world:linux
docker run postgres:latest
docker run postgres:9.6.24
docker run postgres:alpine
docker run postgres:alpine3.17

In this way we can have two different versions of the same image running on the same server since each of these containers are 100% independent from each other.

Case study

To practice more we can create another container that runs an application from an image already created. Let's imagine that we want to create a website with WordPress. If we search the registry we will find an image called wordpress, with the official tag. The recommendation is that we always look for official images, they are maintained and well documented.

On the page we will find the different options that this image has to configure it, although we will see them in more detail later.

For now let's start the image as follows:

docker run -p 8080:80 wordpress

And we will check how the container starts:

$ docker run -p 8080:80 wordpress
Unable to find image 'wordpress:latest' locally
latest: Pulling from library/wordpress
802b00ed6f79: Pull complete
59f5a5a895f8: Pull complete
6898b2dbcfeb: Pull complete
8e0903aaa47e: Pull complete
2961af1e196a: Pull complete
71f7016f79a0: Pull complete
5e1a48e5719c: Pull complete
7ae5291984f3: Pull complete
725b65166f31: Pull complete
e90b121f9520: Pull complete
b5a272809bbd: Pull complete
f045f3ae0e2b: Pull complete
7f51c9ea2d8e: Pull complete
5aa9d0ed164a: Pull complete
8eea44e2bfc7: Pull complete
48918885026e: Pull complete
8ac3e8ada01a: Pull complete
d3da911b920f: Pull complete
94c7e0af5b20: Pull complete
e1f39ac90dec: Pull complete
Digest: sha256:7121cdf8e9f01816653a3b2d2f4fc7bfe1dab956f00db5c7e7689e5f1454029a
Status: Downloaded newer image for wordpress:latest
WordPress not found in /var/www/html - copying now...
Complete! WordPress has been successfully copied to /var/www/html
AH00558: apache2: Could not reliably determine the server's fully qualified domain name,     using 10.17.0.1. Set the 'ServerName' directive globally to suppress this message
AH00558: apache2: Could not reliably determine the server's fully qualified domain name,     using 10.17.0.1. Set the 'ServerName' directive globally to suppress this message
[DDD mmm dd hh:mm:ss.iiiiii yyyy] [mpm_prefork:notice] [pid 1] AH00163: Apache/2.4.25     (Debian) PHP/7.2.10 configured -- resuming normal operations
[DDD mmm dd hh:mm:ss.iiiiii yyyy] [core:notice] [pid 1] AH00094: Command line: 'apache2     -D FOREGROUND'

We see in the new line a new parameter: -p 8080:80. By default, a container is fully isolated. But if we are setting up a blog with WordPress we are going to need to access it from the browser.

With the parameter -p, short for --publish, we can indicate that we are binding a port on the host machine to the container. In this case we are binding port 8080 of the host machine with port 80 of the container.

We are going to open the following web page in our browser:

http://localhost:8080

Which will show us the WordPress installation wizard, which we are not going to install because we need a database that we do not yet have. If we want to store data (a website, a database, etc.) inside a container, we need a way to store it without losing it.

Docker offers three ways:

  • Through volumes, which are Docker objects such as images and containers.
  • Mounting a directory on the host machine inside the container.
  • Storing it in the system memory (although they would also be lost when the server is restarted).

The normal thing is to use volumes, but there will be times when it is preferable to directly mount a directory of our workspace. For example, to save the data of a database we will use volumes, but to save the code of an application or a web page we will mount the directory. We will create a volume to store the Wordpress application database. To do this we will execute the following command:

sudo docker volume create wordpress-db
wordpress-db

We also need to have a database where to store the entries, we will create a container from the image of MariaDB -high performance open source relational database-. We are going to create our database using this volume.

sudo docker run -d --name wordpress-db \
    --mount source=wordpress-db,target=/var/lib/mysql \
    -e MYSQL_ROOT_PASSWORD=secret \
    -e MYSQL_DATABASE=wordpress \
    -e MYSQL_USER=manager \
    -e MYSQL_PASSWORD=secret mariadb:10.3.9

The -d parameter indicates that it should run as a background process. That way we won't be able to stop it by accident with Control+C.

The image will be downloaded, if it wasn't already, and our MariaDB container will start:

Unable to find image 'mariadb:10.3.9' locally
10.3.9: Pulling from library/mariadb
124c757242f8: Pull complete
9d866f8bde2a: Pull complete
fa3f2f277e67: Pull complete
398d32b153e8: Pull complete
afde35469481: Pull complete
31f2ae82b3e3: Pull complete
3eeaf7e45ea6: Pull complete
716982328e17: Pull complete
34ce605c9036: Pull complete
4502ed9073c0: Pull complete
2afafbdf5a96: Pull complete
43d52b11dd31: Pull complete
30c7b70556f3: Pull complete
8b1b39f2f89a: Pull complete
41480b9319d7: Pull complete
Digest: sha256:b7894bd08e5752acdd41fea654cb89467c99e67b8293975bb5d787b27e66ce1a
Status: Downloaded newer image for mariadb:10.3.9
30634831d17108aa553a5774e27f398760bdbdf32debc3179843e73aa5957956

Now we can check that the container has been created:

sudo docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
30634831d171        mariadb:10.3.9      "docker-entrypoint.s…"   20 seconds ago      Up 16 seconds       3306/tcp            wordpress-db

We are going to create our WordPress container again, but this time we are going to connect it to our database. We will need to mount the container directory where WordPress is installed with our user account on the host machine. Let's create the workspace:

mkdir -p ~/Sites/wordpress/target && cd ~/Sites/wordpress

And inside this directory we start the container:

sudo docker run -d --name wordpress \
    --link wordpress-db:mysql \
    --mount type=bind,source="$(pwd)"/target,target=/var/www/html \
    -e WORDPRESS_DB_USER=manager \
    -e WORDPRESS_DB_PASSWORD=secret \
    -p 8080:80 \
    wordpress:4.9.8

When the execution is finished, if we access the address http://localhost:8080/, now we can finish the installation process of our WordPress.

Docker Compose instalation

Docker Compose is a tool to define and run multi-container solutions, which uses YAML files to configure the different applications and carries out the process of creating and starting the containers with just one command (docker-compose up).

Features YAML files

  • Section version: (version number), to define the syntax version of the file in question.
  • Section services:, the different containers that are going to be created together with a network that connects them between them. - image:, image that we want to run. - ports:, port of the container connected to the port of the virtual machine. - environment:, environment variables that can be useful to us, for example: username and password to access the service. - volumes:, create a directory to make the data persist.
  • Section volumes:, to keep the data of the created containers.

Next, you must download and install Docker-compose with the following commands:

sudo curl -L
"https://github.com/docker/compose/releases/download/1.28.5/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

sudo chmod +x /usr/local/bin/docker-compose

You can verify that it has been installed correctly by running the following command:

sudo docker-compose –version

Useful commands

  • sudo docker-compose up, creation and startup of the containers.
  • sudo docker-compose ps, displays information about the services that are defined in the docker-compose.yaml file.
  • sudo docker-compose stop, to stop services.
  • sudo docker-compose down, to delete services. This deletes the containers but not the volumes.
  • sudo docker-compose down -v, to delete the containers and volumes.

Case study

We will do the same as the previous exercise of creating an application with wordpress from docker, but now directly from docker-compose. In the same directory where we were in the previous step (~/Sites/wordpress), we are going to create a file (as if it were a text file) called docker-compose.yaml with the following content:

version: '3'

services:
    db:
        image: mariadb:10.3.9
        volumes:
            - data:/var/lib/mysql
        environment:
            - MYSQL_ROOT_PASSWORD=secret
            - MYSQL_DATABASE=wordpress
            - MYSQL_USER=manager
            - MYSQL_PASSWORD=secret
    web:
        image: wordpress:4.9.8
        depends_on:
            - db
        volumes:
            - ./target:/var/www/html
        environment:
            - WORDPRESS_DB_USER=manager
            - WORDPRESS_DB_PASSWORD=secret
            - WORDPRESS_DB_HOST=db
        ports:
            - 8080:80

volumes:
    data:

Now if we run the application with the command:

sudo docker-compose up -d

When we start the application, Compose informs us of the services it has been raising:

Creating network "wordpress_default" with the default driver
Creating volume "wordpress_data" with local driver
Creating wordpress_db_1 ...
Creating wordpress_db_1 ... done
Creating wordpress_web_1 ...
Creating wordpress_web_1 ... done

We can see the active containers:

sudo docker container ls
CONTAINER ID  IMAGE            COMMAND      CREATED         STATUS         PORTS                  NAMES
a07b5d4d3982  wordpress:4.9.8  "docker.s…"  10 seconds ago  Up 8 seconds   0.0.0.0:8080->80/tcp   wordpress_web_1
d9204884cec5  mariadb:10.3.9   "docker.s…"  11 seconds ago  Up 10 seconds  3306/tcp               wordpress_db_1

And we can also see the containers with Compose:

sudo docker-compose ps
    Name                    Command               State          Ports
-------------------------------------------------------------------------------
wordpress_db_1    docker-entrypoint.sh mysqld      Up      3306/tcp
wordpress_web_1   docker-entrypoint.sh apach ...   Up      0.0.0.0:8080->80/tcp

If we access the address http://localhost:8080/, we will see the WordPress installation again.

Transferring files to the virtual machine

Now you must download the Athena IIACPS_base_folder directory and send it to the virtual machine you have created. This file transfer will be carried out using SCP (Security Copy Protocol) which is based on SSH.

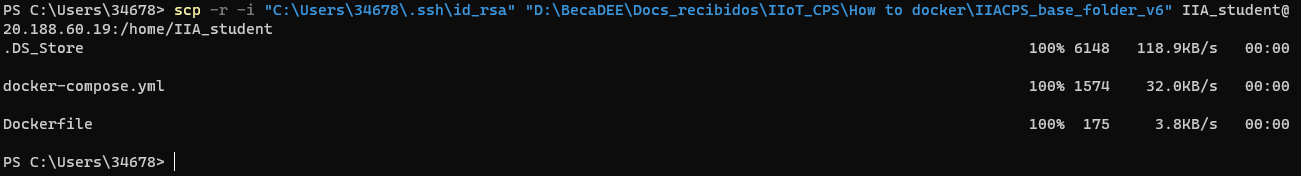

Once cmd or Windows Terminal is open on your computer, enter the following command:

scp -r -i <rutaclaveprivada> <rutadeorigen> usuarioVM@ipVM:
<ruta dedestino>

NOTE: The -r in the command indicates that a complete directory is being sent, if you need to send only one file you can use the same command, removing the -r.

In the terminal you should see that the progress of the file transfer is indicated, reaching 100% when complete. It is recommended that you verify, being connected by SSH to the VM, that you can easily locate the IIACPS_base_folder directory.

container lifting

The following command takes the information collected in the docker-compose to generate the containers. In the case at hand, the docker-compose file that you are using has been written so that it builds a container for each software, three in total.

sudo docker-compose up

The terminal session you are using will hang returning information about the containers in the form of logs, this can be useful when determining what happens if something doesn't work as expected. You must open a new one to continue working.

Alternatively, it is possible to raise the containers without the session being blocked and therefore the logs not being received. To do this, you must add -d to the previous command, leaving it as follows:

sudo docker-compose up -d

In either case, to verify that the containers are active, use the following command, which returns the list of containers:

sudo docker ps

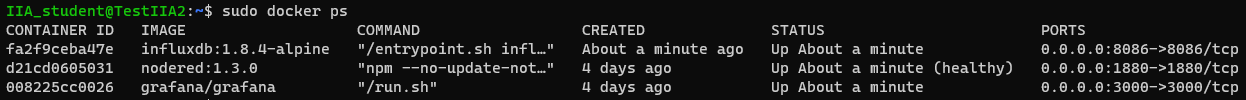

In the console you should see a list like the following. Note that the first time you run the command, all three containers may not have been generated. Re-enter the command until you verify that all three containers are working.

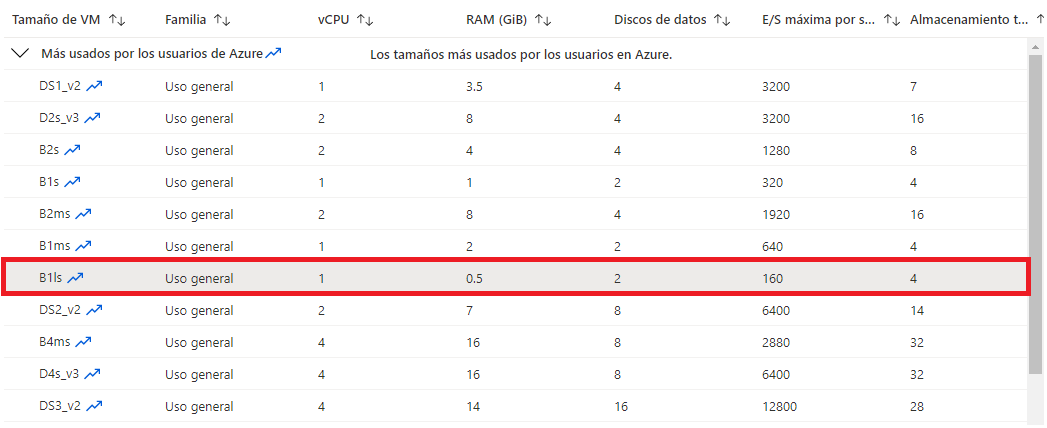

At this point, if you wish, you can modify the features of the virtual machine since all the necessary software has already been installed. The cheapest option is B1ls, see the next screenshot.

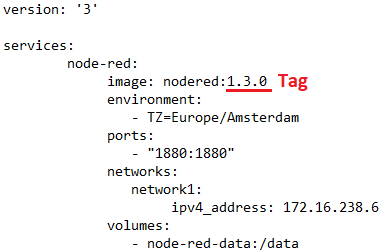

An example of how an image would be created by modifying the .yaml file is explained below.

Example creation of custom image of Node-RED

To mount the image, you must place yourself inside the IIACPS_base_folder folder and execute the following command (NOTE: The point after tag is included in the command since it indicates that it points to the directory we are in) :

sudo docker build -t nodered:<tag> .

You will see when you press “Enter” that a 4-step sequence begins.

When the sequence is finished, you can verify that it has been created correctly with the following command:

sudo docker image ls

Once finished, you will have to edit the file “docker-compose.yml” the tag of the image that you have just assembled. You can exit the Nodered directory with the following command:

cd ..

Once in the folder where "docker-compose.yml" is located, you can edit the file with the following command:

sudo nano docker-compose.yml

Be careful not to add spaces or tabs. You only have to edit the line shown in the following screenshot by modifying the tag you have chosen for your image. You can navigate through the file with the directional arrows on the keyboard.

When you have made the modification, remember that you can save the changes using “CTRL+O”, it will ask you to name the file and you should not modify the name, so it will be enough to press “Enter”. Finally, to exit the nano file editor, use “CTRL+X”. You only have to do the process of creating the custom image for Node-RED once.
